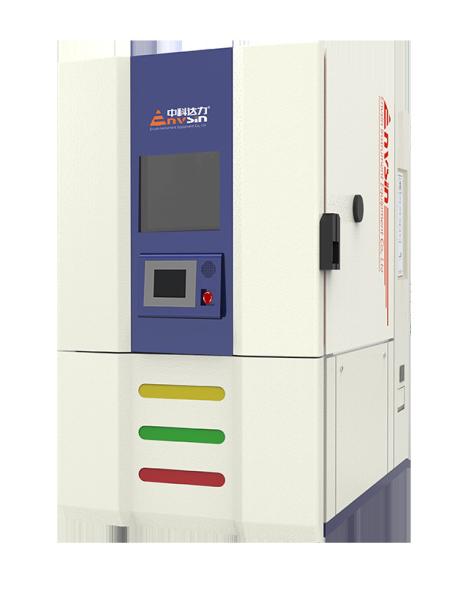

Compact Temperature and Humidity Chamber for Small-Scale Testing

  • 1
  • 2
  • 3

Brand Name : Envsin

Model Number : ETP200-X

Certification : CE and ISO

Place of Origin : China

MOQ : 1

Price : To Be Negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 25 per month

Delivery Time : 30-35 business days after received the payment

Packaging Details : Well packed in strong wooden case suitable for all types of long distance shipment

Product name : Universal Testing Machine

Application : Steel Tensile Test Machine

Test Standards : GB, ISO, ASTM, BS, DIN, JIS standards

Force unit : kgf,gf ,N,kN,Ibf

Units : Stress unit: MPa,kPa,kgf/cm²,Ibf/in²;

Power : AC230V±10%,50HZ,1/N/PE

Contact Now

Temperature and Tensile Combined Universal Testing Machine Mechanical Testing Equipment

Features:

• Multi-utility Clamps Removable and Replaceable.

• High accuracy: Gapless ball screw and synchronous transmission system design.

• Quick response frequency servo motor for control center unit, making transmission sensitive,
• Update service for operation system; professional data analysis ability.

• Tensile combined with environmental temperature parameters for universal testing purposes.

• Independent and removable environmental chamber of high accuracy; constant temperature control.
• Deformation test function on plastics, rubbers and mental specimens.

• PC with professional software management for parameters setting, test control, data analysis.

• Pre-installed complete database kernel providing professional data analysis.

• Tailored service for clients with special demands or requirements.

• Optional functions: pull, press, bend, rub, cut, peel, tear, sustained pull or press and anti-fatigue test.

• Metal stretch meter, displacement coder and large deformation extensometer interfaces reserved.

Specification:

High Temperature Model ETP

High/low Temperature Model ETPS

ETP200-X(X is test force)

ETPS415-X(X is test force)
Temperature Range RT ~200℃ -40~150℃
Temperature Accuracy Constancy : <± 0.5 ℃ ； Homogeneity: <± 2.0℃ (No load, ambient temperature 25℃)
Max. Force 2/5/10/20/50/100/200/500/1000/2000kg; one of them provided
Operation System PC with Windows system and total opening professional test management software
Measurement Accuracy <±0.5%
Measurement Resolution 1/500000
Deformation Resolution 0.01mm
Deformation Reading Accuracy <±0.5%
Force Range 0.5%~100%F.S
Test Speed Range 0.5~500mm/min (among 0.5~1000mm/min); stepless speed regulation
Max. Stroke 450mm, Clamps excluded (depended on the chamber volume )
Test Space width 220mm; depth 350mm(depended on the chamber volume )

Units

Force unit: kgf,gf ,N,kN,Ibf ;

Stress unit: MPa,kPa,kgf/cm²,Ibf/in²;

Deformation unit: mm,cm,in; (user-defifined units available)

Stop Methods

Limit sensors up and down; emergency stop button; Programmable force and stretch set;

Specimen damage sensors

Special Functions

 Sustained pull, press, fatigue, bend, fold, cut and other tests as required by users in accordance with test methods or standards.
Transmission Structure High accuracy ball screw
Driving-Force Device Quick reponse frequency servo motor
Power AC230V±10%,50HZ,1/N/PE

Chamber Internal Dimension(W*D*H)

220mm*350mm*450mm(with obversation window and light)

Tensile Tester Dimension: 760mm*450mm*1540mm

Overall Dimension (W*D*H)

Chamber Dimension :450mm*1050mm*600mm / 450mm*1450mm*600mm

(Extreme High Temp./High/Low Temp. Models);

Overall Dimension: 760mm*1050mm*1540mm / 1130mm*1450mm*2650mm(min/max);
Test Standards GB, ISO, ASTM, BS, DIN, JIS standards
Customized Accepted all kinds of tailored designs

Options Accessories:

  • ​1 Popular Brand PC
  • 1 Popular brand Color printer
  • Plastic Test Package: For plastic bottle body pressure and film test: roof press, pull and stretch, pierce, bottle cap unbolt
  • Rubber Test Package: rubber extensometer for high accurate test resolution; turn test

​​Metal Test Package: metal extensometer

  • Textile and Leather Test Package: different clamps provided in accordance with different products and test standards.
  • Test Package:viscosity test for adhesive tape; stable and high accuracy; able to do peel test of 180°, 90° and T-form.
  • Stretch Test:all kinds of force stretch test for varieties of materials; precise control of specimen extensibility and tensile failure force.

Standard Version:

  • Basic Test Package: general accessories package, including pull/stretch and press Clamps and professional software, for basic tensile tests.
