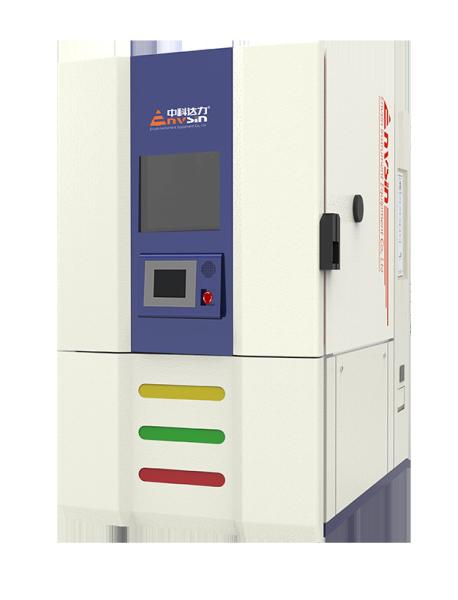

80L 190L 335L 6000L 1000L High Low Temperature Humidity Test Chamber

Name: 80L 190L 335L 6000L 1000L High Low Temperature Humidity Test Chamber
Brand: Envsin
Price: 1 USD

Brand Name : Envsin

Model Number : EC series

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 2Months~3Months

Packaging Details : Woden Case

Customized support : OEM, ODM

Power supply : AC380V 50HZ

Temperature range : -72/+180

Power : Electronic

Heating Rate : 2 (℃/min)

Cooling Rate : 3 (℃/min)

Contact Now

80L 190L 335L 6000L 1000L High Low Temperature Humidity Test Chamber

Functions:Constant temperature and humidity test chambers are precision equipment used to create stable environmental conditions to evaluate the performance and reliability of products and materials. Their key features include:
Temperature Control: Wide range from -70°C to +150°C, depending on the model.
Humidity Regulation: Maintains relative humidity from 10% to 98%.
Precise Control: High accuracy in temperature and humidity regulation for reliable testing.
Customizable Test Cycles: Automated programs for short-term or long-term testing.
Applications:These chambers are widely used in various industries for testing product endurance and quality under controlled temperature and humidity conditions, such as:
Electronics: Verifying the durability of circuit boards, semiconductors, and electronic devices.
Automotive: Testing vehicle components like sensors, interiors, and electronics.
Aerospace: Assessing material performance under extreme environmental conditions.
Pharmaceuticals: Conducting stability tests for drugs and medical devices.
Textiles and Plastics: Evaluating the durability and stability of fabrics and polymers.

80L 190L 335L 6000L 1000L High Low Temperature Humidity Test Chamber

Specifications

Model	EC4018	EC7018	EC4034	EC7034	EC4060	EC7060	EC4150	EC7150
Test Space Volume(L)	190		335		600		1540
Temperature Test Parameters:
Temp. Range (℃)	-42/+180	-72/+180	-42/+180	-72/+180	-45/+180	-72/+180	-42/+180	-73/+180
Temp.Constancy(℃)	±0.1 - ±0.5
Temp.Homogeneity(℃)	±0.5 - ±2.0
Heating Rate (℃/min)	4.0	4.0	3.2	3.0	4.0	4.0	3.5	3.5
Cooling Rate (℃/min)	4.0	3.0	4.0	3.0	3.0	2.5	2.5	2.3
Temp. Max. Thermal Compensation(W)	2800	1500	2800	1500	2500	2500	4200	3000
Climate Test Parameters:
Dewpoint Temp. Range (℃)	+4(-3)~+94
Humid. Range (%RH)	10~98
Humid. Constancy(%RH)	±1.0 - ±3.0
Temp. Constancy(℃)	±0.1 - ±0.3
Temp. Homogeneity(℃)	±0.5 - ±2.0
Temp and Humid Max. Thermal Compensation(W)	400	400	400	400	500	500	500	500
Power	AC380V±10%,50HZ,3/N/PE
Cooling Methods	Air-Cooled

Options	Standard Version
☆ Independent sensors for specimen protection	☆ 3 Power outlets for specimens
☆ 1 Entry port φ 100mm	☆ Left and right entry ports φ 50mm
☆ Drier filter for compressing air	☆ Silicon stoppers for entry ports
☆ Automatic water supply device	☆ 2 Stainless steel shelves
☆ Nitrogen gas auxiliary device	☆ 1 Water tank with 20L
☆ Water-Cooled unit	☆ 1 Water filter
☆ Spare parts package
☆ E-management and Cybersoftware
☆ APP for mobility management

Structure

80L 190L 335L 6000L 1000L High Low Temperature Humidity Test Chamber

Composition

1 Exterior material: Both sides static coated cold rolled steel
2 Interior material: SUS304 Stainless steel
3 Insulation material: Rigid polyurethane foam insulation layer

Load-bearing

1 Shelves load capacity:≤50Kg(averagely loaded)
2 Test case frame bearing capacity:≤20Kg(averagely loaded)
3 Test space total load weight(shelves and bottom)≤80kg

Chamber door

1 Single door with hinges on the left;
2 Door size:580×750 mm(W×H);
3 Silicon rubber equipped and heating system inside for anti-condensation

Observation window

Size:280×400mm(W×H), coated heating anti frost hollow glass

Circulation Air

Full coverage, no temperature difference type air duct structure system: (Patent No:ZL201220245356.8)

80L 190L 335L 6000L 1000L High Low Temperature Humidity Test Chamber

Design structure of moisture dripping proof

Drip proof protection structure for sample:(Patent No:ZL201220244190.8)
